FI0M-U2-72 Core Ultra 7-LAN Edge AI Box PC
FI0M-U2-72 Arrow Lake edge AI box PC with 7 LAN, 4 USB 3.0, 2 COM, 16DI/16DO, up to 99 TOPS and 9-36 V DC input.

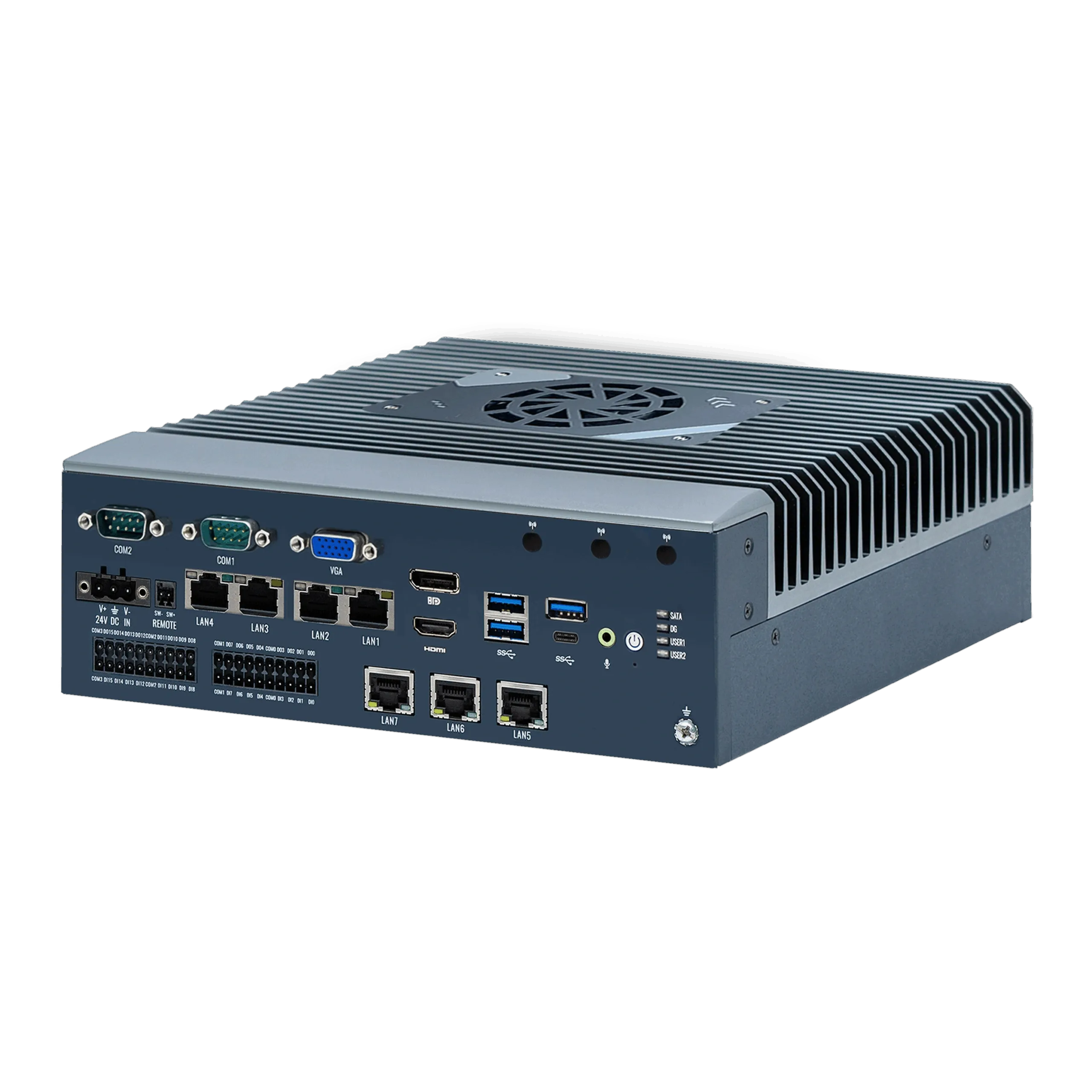

The FI0M-U2-72 is a rugged industrial box PC for edge AI, multi-camera analytics and high-throughput industrial networking. Based on the EA510F platform, it combines Intel Core Ultra Arrow Lake U/H processors, seven Intel i210 GbE ports, 16DI/16DO, four USB 3.0 ports and a 9-36 V DC input. This is an actively cooled platform; it should not be specified as fanless.
Request a configuration review: email us through the contact page or chat with VstrongTechPC on WhatsApp. Send the AI model, camera count, I/O map, installation drawing and required OS so we can check one complete orderable configuration.
Why integrators shortlist the FI0M-U2-72
• Nine Arrow Lake U/H order configurations span Core Ultra 5, 7 and 9 processor choices with 14 or 16 cores.
• CPU, GPU and NPU acceleration delivers up to 99 TOPS only on the listed 8Xe LPG+ configuration: GPU 77 TOPS, NPU 13 TOPS and CPU 9 TOPS.
• Seven Intel i210 GbE ports can connect cameras and segmented machine networks without an external Ethernet switch.
• Four USB 3.0 ports, two COM ports and 16DI/16DO connect industrial peripherals and control signals.
• H-series configurations can support an optional MXM 3.1 Type A GPU up to 60 W; thermal and power design must be confirmed.
These are configuration advantages, not a promise that every optional feature can be combined. Confirm the exact build code before releasing the bill of materials.
Select the CPU and AI configuration

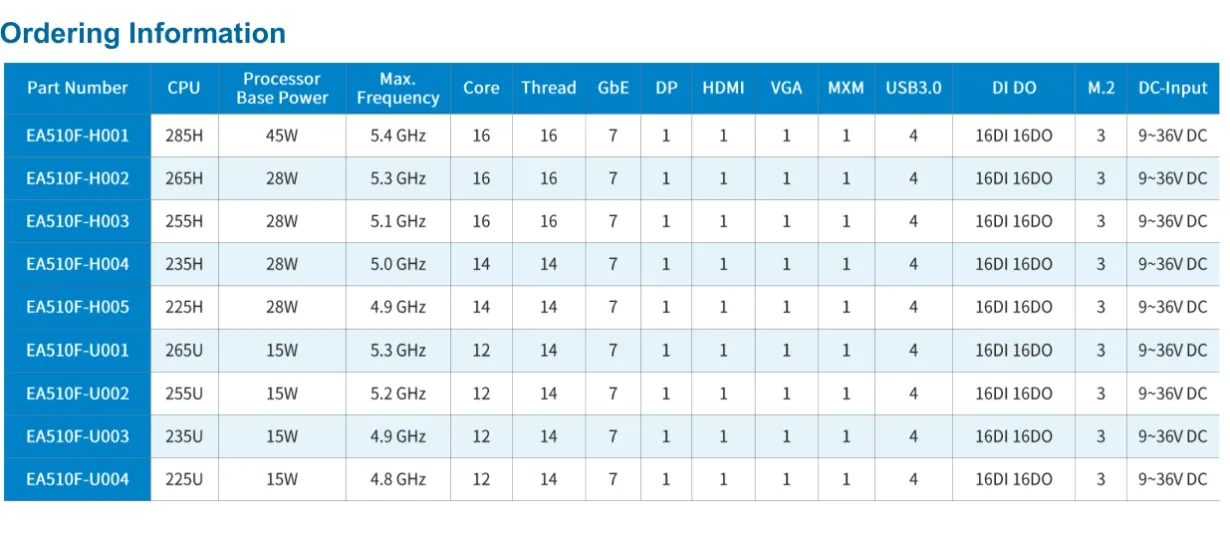

FI0M-U2-72 is the VstrongTechPC commercial model for the EA510F platform. Final quotations retain the applicable source configuration code. Available Arrow Lake processors are H-series 285H, 265H, 255H, 235H and 225H, plus U-series 265U, 255U, 235U and 225U. H-series order codes provide 28 W or 45 W processor base power and support the optional MXM module; U-series order codes provide 15 W processor base power. Maximum turbo power is listed at up to 115 W for the platform.
Dual-channel DDR5 SO-DIMM memory supports up to 64 GB. Integrated AI performance is workload- and SKU-dependent; the 99 TOPS figure is the sum of GPU 77 TOPS on 8Xe LPG+ SKUs, NPU 13 TOPS and CPU 9 TOPS, not an NPU-only rating. Provide the AI framework, model format, precision, latency target and expected camera streams before selecting a processor or optional MXM GPU.
Plan the network and peripheral map

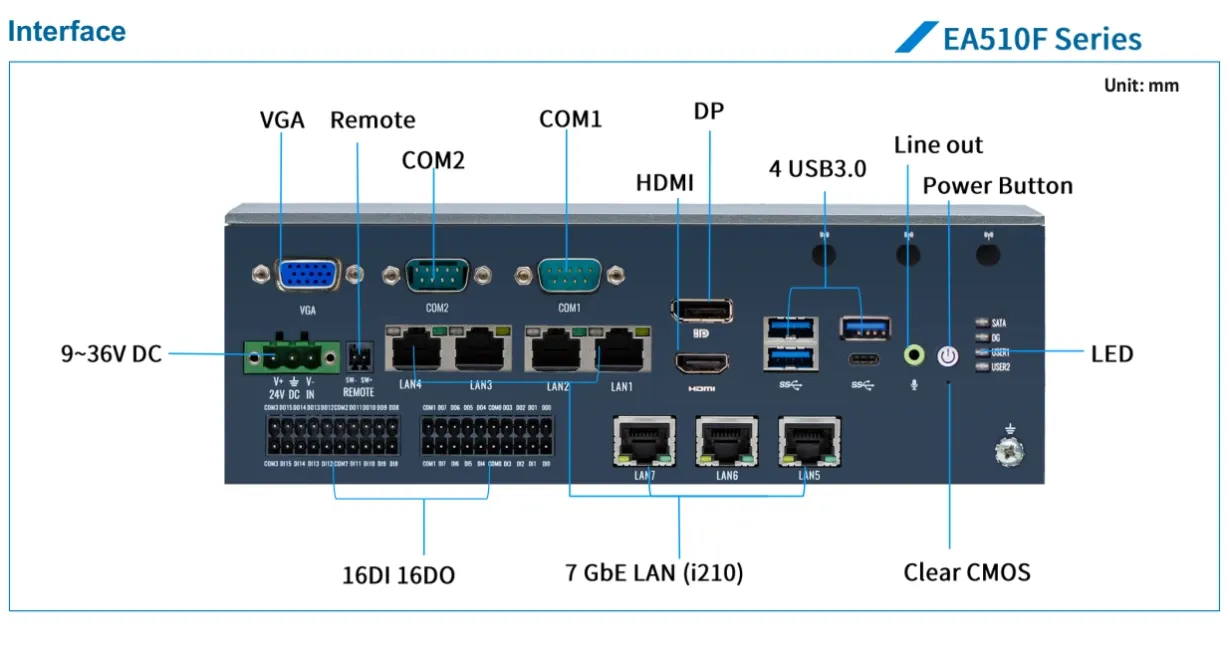

The external network layout is seven Intel i210 GbE ports. USB connectivity is four USB 3.0 ports: three Type-A and one Type-C. COM1 supports RS-232/422/485, while COM2 supports RS-232. The platform also provides 16 digital inputs, 16 digital outputs and one line-out connection.
Display outputs include DP 1.4a up to 4096 x 2160 at 60 Hz, HDMI 2.1 up to 4096 x 2304 at 60 Hz in TMDS mode or 7680 x 4320 at 60 Hz in FRL mode, and VGA up to 1920 x 1200 at 60 Hz. Confirm the required HDMI mode, cable and display compatibility before ordering.
Map each camera, PLC, scanner, drive, sensor and service connection to a physical port before quotation. Where PoE, protocol switching or extra COM is optional, state it explicitly in the RFQ. This prevents a nominal port count from hiding a controller, power-budget or cable-layout mismatch.
Verify mechanical, thermal and power limits
The enclosure measures 220 x 226 x 74.8 mm and weighs approximately 3.4 kg. The specified mounting method is wall mounting. The listed environment is 0 to 50 C operating and -40 to 85 C storage, with non-condensing humidity limits of 95% at 40 C operating and 95% at 60 C storage.
Power input is 9-36 V DC ±10% with AT/ATX management and a listed maximum consumption of 200 W. The platform is actively cooled and an H-series MXM configuration can add up to a 60 W GPU, so check fan clearance, airflow, connector bend radius, grounding and the available DC power budget under the maximum application load.
FI0M-U2-72 technical specification
Section | Item | Specification
Platform mapping | Vstrong model | FI0M-U2-72, based on the EA510F industrial PC platform
Processor | CPU options | Core Ultra 9 285H; Core Ultra 7 265H/255H/265U/255U; Core Ultra 5 235H/225H/235U/225U
Processor | Order codes | EA510F-H001/H002/H003/H004/H005 and EA510F-U001/U002/U003/U004
Processor | Power | 15-45 W processor base power by SKU; up to 115 W maximum turbo power
AI | Performance | Up to 99 TOPS total: GPU 77 TOPS on 8Xe LPG+ SKUs, NPU 13 TOPS, CPU 9 TOPS
Memory | Capacity | Dual-channel DDR5 SO-DIMM, up to 64 GB
Display | DisplayPort | 1 x DP 1.4a, up to 4096 x 2160 @ 60 Hz
Display | HDMI | 1 x HDMI 2.1, up to 4096 x 2304 @ 60 Hz TMDS or 7680 x 4320 @ 60 Hz FRL
Display | VGA | 1 x VGA, up to 1920 x 1200 @ 60 Hz
Networking | Ethernet | 7 x Intel i210 GbE
I/O | USB | 4 x USB 3.0 (3 Type-A, 1 Type-C)
I/O | Serial | 1 x RS-232/422/485 and 1 x RS-232
I/O | Dedicated control | 16 digital inputs and 16 digital outputs
Expansion | Storage and wireless | M.2 M-Key 2280 PCIe x4/SATA; B-Key 3042/3052 4G/5G/SATA; E-Key 2230 Wi-Fi/CNVi; Nano SIM
Expansion | Optional GPU | H-series configurations support up to 60 W MXM 3.1 Type A GPU
Power | Input and management | 9-36 V DC ±10%; AT/ATX
Power | Maximum consumption | 200 W
Mechanical | Cooling | Active cooling; not a fanless platform
Mechanical | Dimensions and weight | 220 x 226 x 74.8 mm; approx. 3.4 kg
Mechanical | Mounting | Wall mounting
Environment | Operating/storage | 0 to 50 C operating; -40 to 85 C storage
Certification | EMC and ESD | CE, FCC Class B; ESD 8 kV contact / 15 kV air
Operating system | Supported OS | Windows 10/11, CentOS 8, Ubuntu 20.04/22.04/24.04
Configuration checklist
Before requesting a quotation, provide:
• Application workload and required OS.
• CPU, memory and storage target.
• Exact LAN, COM, USB and digital-I/O map.
• Display and external-monitor requirements.
• Wall-mount space, fan clearance and available airflow.
• Input voltage, connector and remote-switch requirements.
• Operating temperature and vibration conditions.
• Wi-Fi, cellular or optional MXM GPU requirement.
Email the checklist through the contact page or continue on WhatsApp. Current interface and ordering drawings can be supplied with the configuration review. Compare other form factors on the product overview.
