Fanless Industrial PC | Intel 6th-11th Gen Core i5/i7 | 4x LAN| DC 9-36V

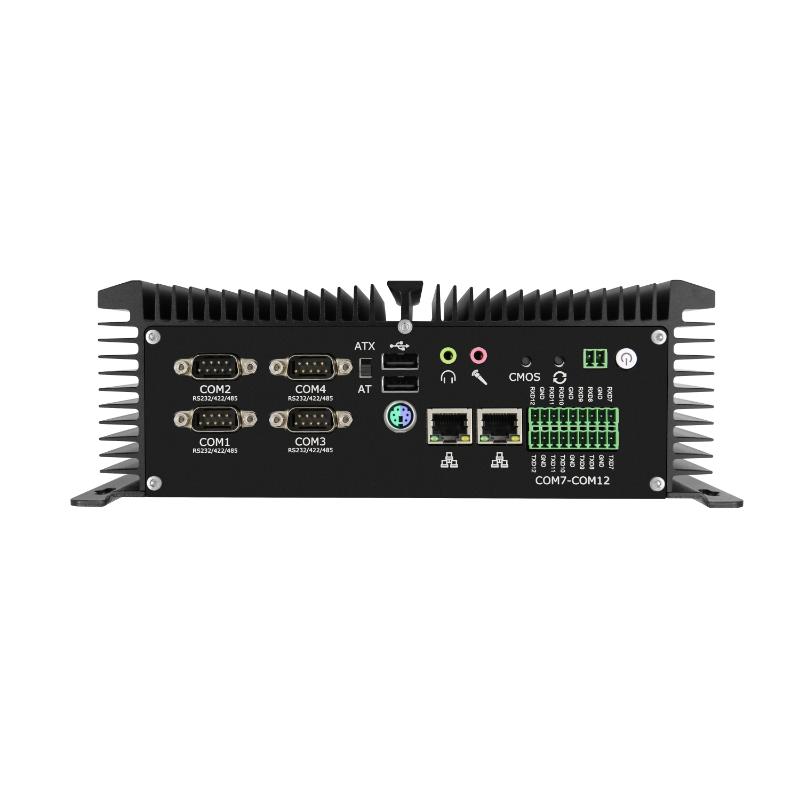

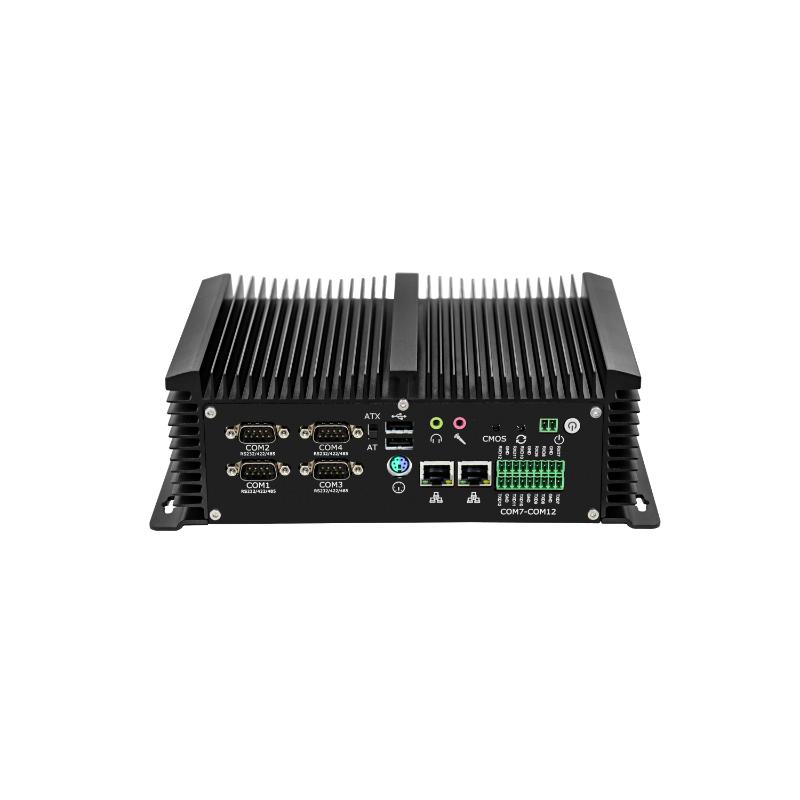

The VST-IBC4LAN is a high-performance, fanless industrial computer designed for mission-critical automation and edge computing. Supporting Intel 6th through 11th Gen Core i5/i7 processors , this rugged unit features dual storage (MSATA/NVME) , quad Intel Ethernet ports (including 2.5G support) , and a wide-range DC 9-36V power input , making it the ideal gateway for IoT, machine vision, and industrial control environments
Key Features & Highlights
- Elite Processing Power: Compatible with 6th to 11th Gen Intel Core i5/i7 CPUs for scalable performance.
- Advanced Connectivity: Equipped with 4x Intel LAN ports (2x i211 & 2x i255V) for high-speed, reliable networking.
- Industrial-Grade Build: Rugged aluminum housing with a fanless design ensures silent operation and durability in harsh conditions.
- Flexible Expansion: Features 10x USB ports , 6x COM ports (RS232/422/485) , and Mini-PCIe for WiFi or 4G/LTE integration.
- Wide Temperature Resilience: Operates reliably from -20 to +60 C, perfect for outdoor or factory-floor deployments.
CPU | CPU/Socket | Support 6/7/8/10/11 Gen Core 5/i7 CPU |
Memory | | 7/8th Gen DDR4*1 Max 16GB. 10th Gen DDR4 SODIMM.2 Max 32GB |
Storage | | 1x MSATA 1x M.2 NVME 2280 1x HDD/SSD |
Watchdog Timer | Yes | |
Ethernet | | 2 x Intel i211, 2 x Intel i255V |
IO | USB | 6 x USB2.0, 4 x USB3.0 6x RS232 (4*RS422/RS485optional) 1*HDMI +1*VGA 1xPS2 14bit GPIO 1 x Power Button / Reset Button / Clear Cmos button / slide switch AT/ ATX 1 x DC 9-36V |
Expansion | Optional expansion | 1 * Mini-PCIe ( optional WiFi,3G/4G optional, with SIM card slot on borad ) |
Power | Power Adaptor | 9-36V DC, power adapter optional |
Environment | OperationTemperature | -20 ~ 60° C with air flow |
Storage Temperature | -30 ~ 70° C | |
Relative Humidity | 95% @ 40° C (non-condensing) | |
Vibration during Operation | IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) Fast®:2Grms@5~500Hz | |
Shock During Operation | IEC 68 2-27 CFast®: 10 G half sine,11 ms | |
Mechanical | Weight（kg） | 1.3 kg Net |
Dimension (mm) | 248 x 150 x 83 mm | |
Construction | Aluminum housing | |
OS | Windows 10/11 /Linux | |
