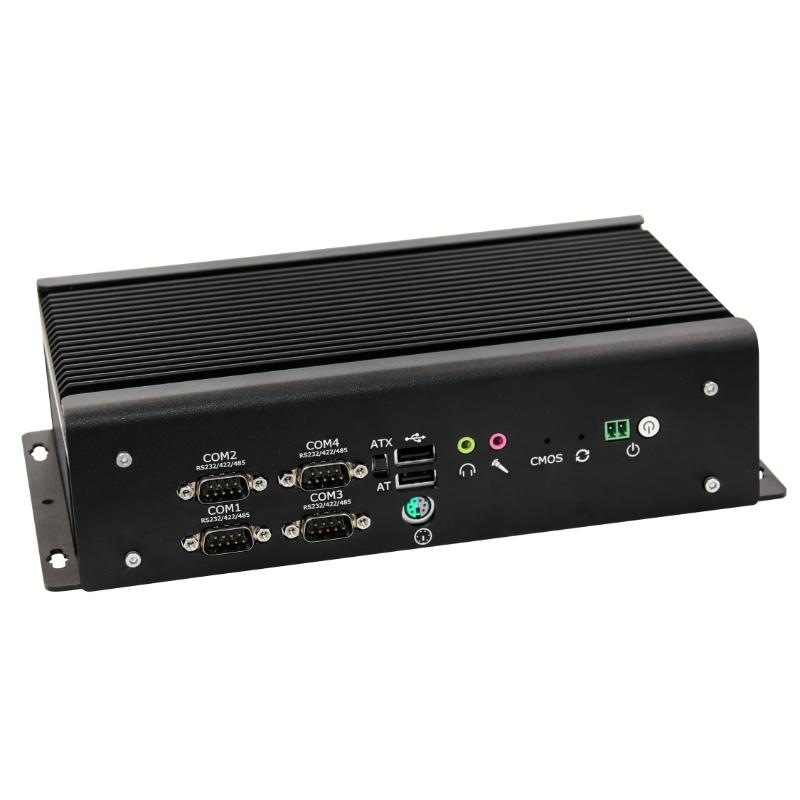

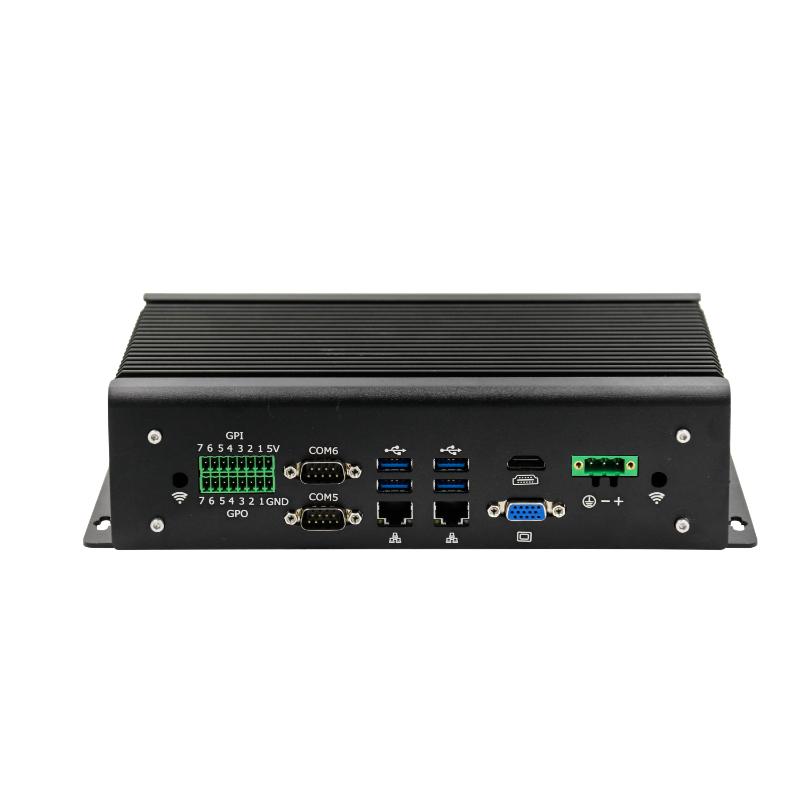

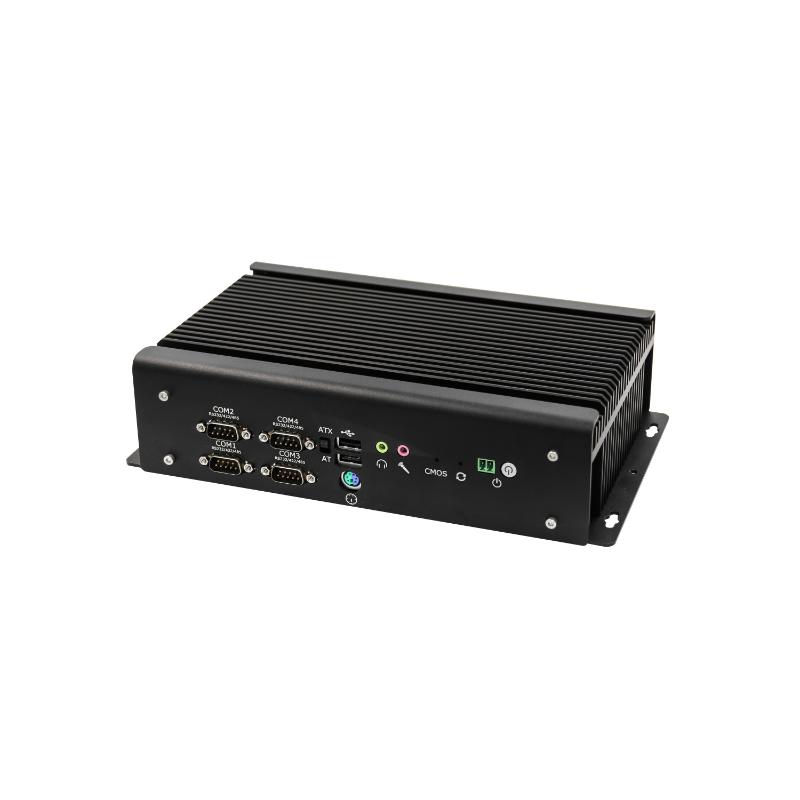

The VST-IBC6 is a versatile, high-performance fanless industrial computer engineered for seamless integration into automation, transportation, and digital signage. Supporting an extensive range of Intel 6th through 12th Gen Core processors , it features a rugged aluminum chassis , dual storage options (MSATA/NVME) , and a rich I/O set including 14-bit GPIO and 6x COM ports. Its wide-voltage 9-36V DC input ensures stable operation in fluctuating industrial power environments.
CPU | CPU/Socket | Support 6/7/8/10/11/12th Gen Core i3/i5/i7 CPU |
Memory | | DDR4 SODIMM x2, up to 32GB |
Storage | | 1x MSATA 1x M.2 NVME 2280 |
Display | HDMI | 1 x HDMI, 1x VGA |
Ethernet | Controller | 2 x GbE RJ45 Intel i211/i210 |
Speed | 10/100/1000 Mbps | |
Connector | RJ45 | |
Audio | Audio Interface | 1 * Mic-in + 1 * Audio-out |
Watchdog Timer | Yes | |
IO | USB | 4 x USB3.0，2 x USB2.0 |
COM | 6*DB9 (wherein 4 *RS485/422 optional) | |
PS2 | 1 x PS2 (keyboard& mouse 2 in 1) | |
GPIO | 14 x GPIO (7*in & 7* out) | |
Switch | 1* slide switch support AT/ATX | |
Expansion | Optional expansion | 1* Mini PCIE half-size card supports WIFI & BT |
1* Mini PCIE full-size card (with SIM card slot) supports 4G / WIFI & BT | ||
Power | Power Type | 9-36V DC |
Power Adaptor | DC12V/5A power adapter (optional) | |
Environment | Operational Temp | -20 ~ 60° C with air flow |
Storage Temp. | -40 ~ 85° C | |
Relative Humidity | 90% @ 30° C (non-condensing) | |
Anti-vibration | IEC 68-2-64 (Random 1 Oct./min, 1hr/axis.) CFast®:2Grms@5~500Hz | |
Shock During Operation | IEC 68 2-27 CFast(r): 10 G half sine,11 ms | |
Mechanical | Weight（kg） | 1.3 kg |
Dimension (mm) | 240 x 150 x 65 mm | |
Construction | Aluminum housing | |
OS | Windows 10/11,LINUX | |
