Compact 6.5 inch Windows Rugged Mobile Terminal - IP67 Industrial Handheld - Industrial Panel PC & Fanless Mini PC Manufacturer

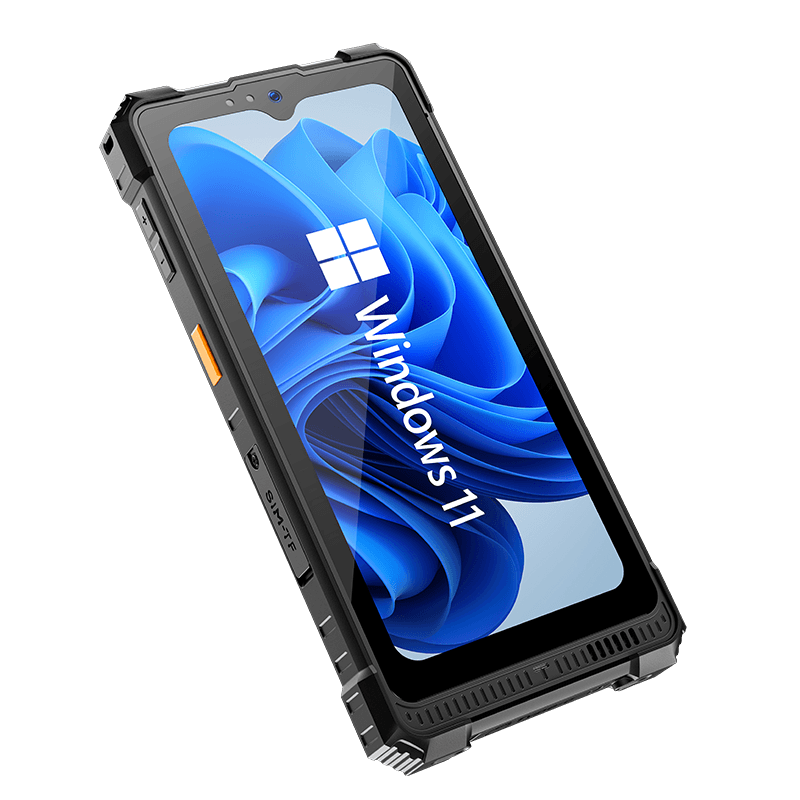

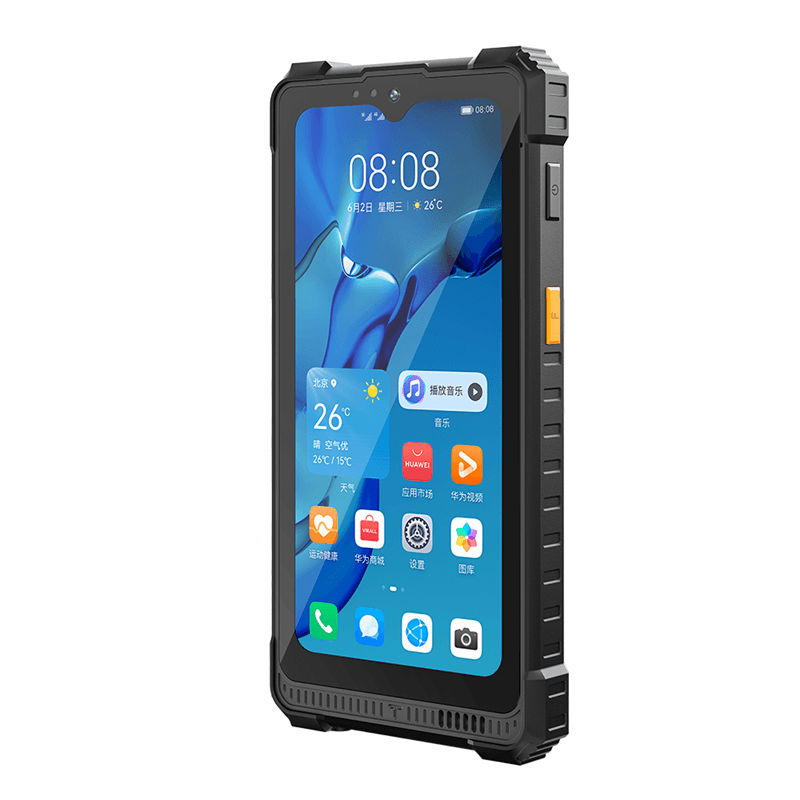

Vstrong 6.5" Windows Rugged Handheld: Full PC Power in Your Palm

The Vstrong 6.5-inch rugged handheld terminal is a groundbreaking mobile computing solution that brings the full versatility of Windows and Linux OS to a pocket-sized form factor. Engineered for elite field professionals, this terminal is powered by the Intel® Gemini Lake N4020 processor with 8GB RAM, ensuring desktop-class software runs smoothly on the move.

Designed for high-intensity outdoor use, its 700-nit high-brightness display guarantees superior readability under direct sunlight. Despite its compact size, it is a connectivity powerhouse featuring 4G LTE, high-precision GPS, and optional integrated 2D barcode scanners and NFC. With a ruggedized chassis and a reliable 3580mAh battery, it is the ultimate tool for industrial inspection, logistics management, and mission-critical field service where failure is not an option.

Product Form	Type	6.5 inch windows Rugged Handheld
	Size	182.487.6623.15mm
	Weight	470g
	Screen size	6.5 inch，full laminated TFT color full screen Dropnotch， 20:9
	Screen resolution	720*1600，IPS
	Screen brightness	700cd/㎡
	TP Touch screen	5 points Capacitive, G+FF, Corning Gorilla Glass, Hardness 6H or higher, scratch-resistant.

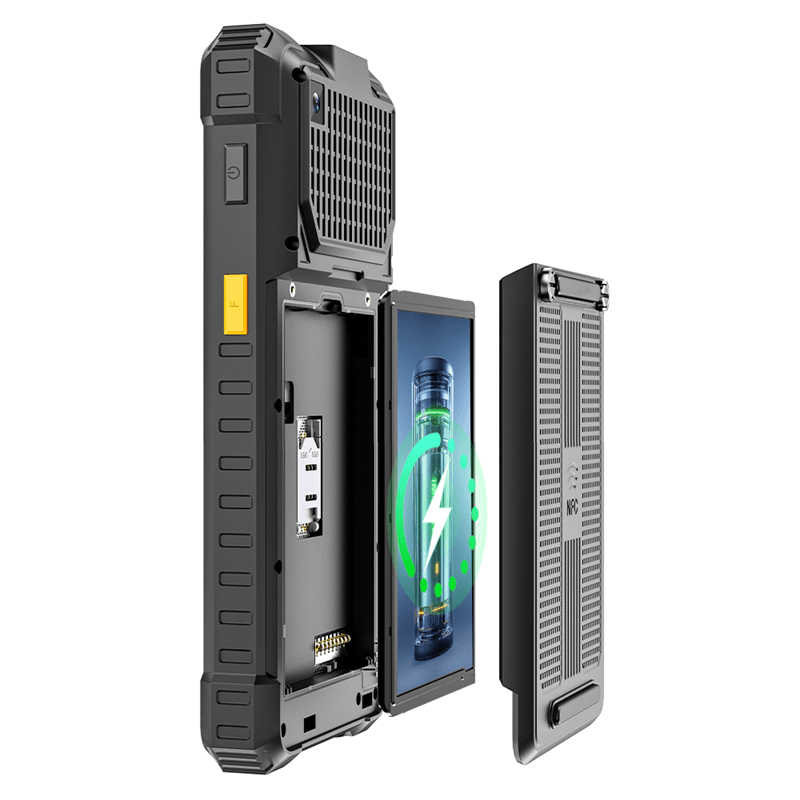

	Battery	7.4V/3580mAhExternal polymer lithium ion battery，About 6 hours
	Camera	Front 8.0MP，Rear 12.0MP
	Speaker	Embedded 1Ω/1W speaker* 1 95dB@0.1m
	MIC	single microphone
	Button	Power *1
		Volume Adjustment Key (+) *1
		Volume Adjustment Key (-) *1
		Bar code scanning (left and right)*2
Hardware configuration	CPU	Gemini Lake N4020 processor, 2 cores and 2 threads, embedded 4 MB SmartCache, TDP 6W The maximum frequency is 2.8GHz
	GPU	Intel® UHD Graphics 600
	RAM	8GB LPDDR4
	SSD	128GB EMMC
	G_sensor	Support

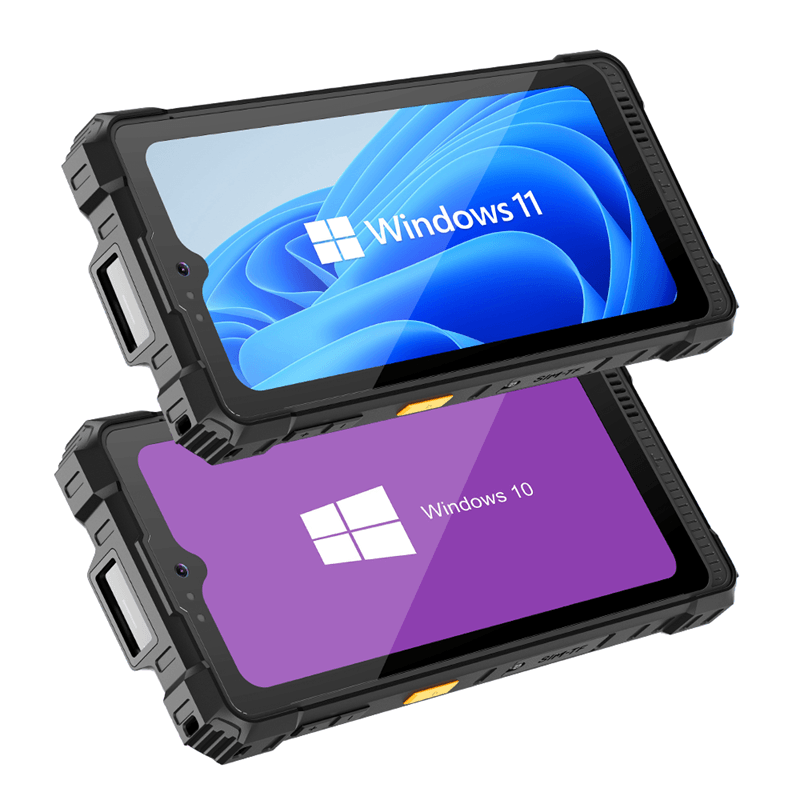

System	windwos	Windows 11 Optional windows10
Wireless Connection Function	WIFI	Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
	Bluetooth	BT5.0 (BLE) class1 transmission distance: greater than 10m
	3G/4G (Optional )	LTE-FDD：B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71 LTE-TDD：B38/39/40/41 WCDMA：B1/2/4/5/6/8/19
	5G (Optional )	Region:EMEA,Australia,Japan,Korea 5G SA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD:B34/B38/B39/B40/B41/B42 WCDMA:B1/B5/B8 Region:China 5G SA&NSA: N1/N28/N41/N78/N79 LTE-FDD:B1/B3/B5/B8/B28 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 Region: North America 5G NR : N2/N5/N7/N12/N13/N14/N25/N38/N41/N48/N66/N71/N77/N78 LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE-TDD:B38/B41/B42/B43/B48 WCDMA:B2/B4/B5
	GPS	GPS、Beidou, Galileo、GLONASS
	NFC	13.56MHz，Support ISO/IEC 14443A/14443B/15693/18092/mifare reading distance: 3-5cm
	2D Barcode Scanner （Optional）	Optional, Honeywell N4680 hard decode Optical resolution: 5mil Scanning speed: 30 times /s Support code: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse"
Interface	TYPE-C	TYPE-C 2.0*1 (Charge、OTG 、(Data transmission）
	USB	USB3.0*1
	TF	*1（Max: 512GB）
	SIM	*1（Nano-SIM）
	POGO PIN	*1（4pin）
Product reliability	Certification	IP67，3C，CE，FCC，MIL-STD-810H，China Energy Conservation Certification UN38.3，MSDS，IEC62133
	Drop test height	1.5m Composite wood floor working (Power-on state)
	Working temperature	‘-20 °C - 60 °C
	Storage temperature	’-30 °C - 70 °C
	Humidity	95% Non-Condensing
Others	Power supply	Input 100-240V AC 0.5A 50/60Hz Chinese standard CCC certification PD3.0 30W
	Accessories	30W Fast charge adapter、C to C data cable
	Accessories (Optional)	Charge Base
