15.6 Inch Industrial Panel PC
15.6-inch industrial panel PC with a thin front bezel, Full HD display, IP65 front panel, flexible Intel CPU choices, and 9-36V DC input.

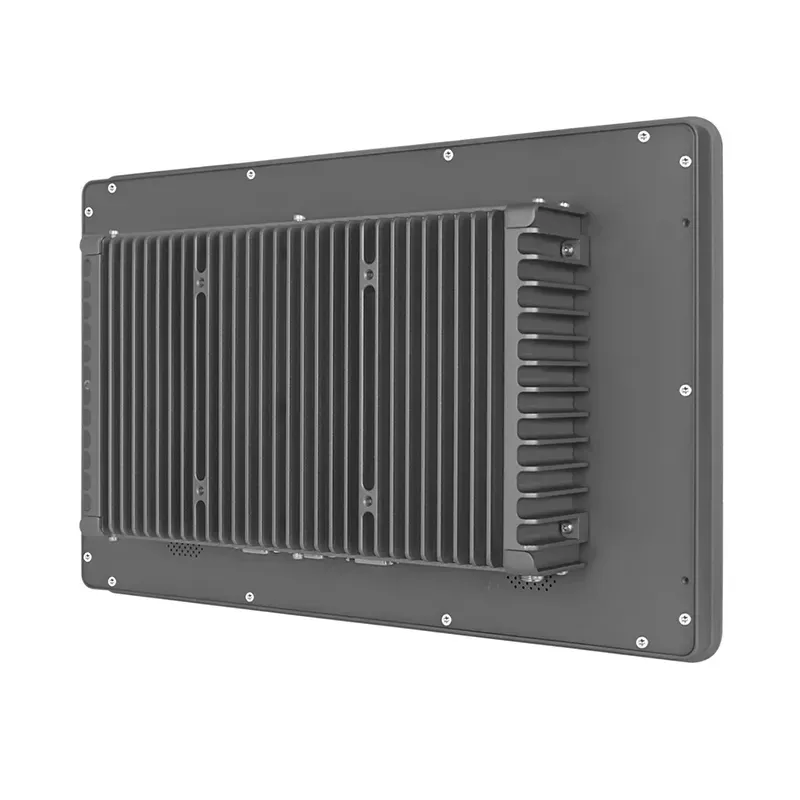

15.6 Inch Industrial Panel PC
Full HD Thin-Bezel Industrial HMI
This 15.6-inch industrial panel PC is designed for control panels, production equipment, and edge systems. Its aluminum enclosure, thin front bezel, and IP65-protected front face provide a durable HMI platform.
Technical Specifications
Display: 15.6-inch TFT-LCD; 85 degree viewing angle; 1920 x 1080 resolution; 250 cd/m2 luminance; 30,000-hour backlight life.
Touchscreen: 5-wire resistive touch screen; capacitive touch optional; 85% light transmission; 10 million activations.
CPU and Memory: Intel Celeron J4125/J6412/N100 or 8th/10th/11th/12th/13th Gen Core i5/i7. DDR4 or DDR5 SODIMM memory; up to 64 GB depending on platform.
Storage and Expansion: M.2 2242/2260/2280 SATA, 2.5-inch SATA, M.2 2280 NVMe; optional 3G/4G/5G; M.2 2230 Wi-Fi and Bluetooth.
I/O and Networking: 2 x RJ45 Intel i225V LAN; optional expansion to 4 LAN. 4 x USB 2.0 + 2 x USB 3.0. 2 x DB RS-232/422/485; optional 4 x RS-232. 1 x HDMI, 1 x audio line-out, optional GPIO, watchdog timer.
Power and Environment: 9-36V DC aviation connector. Operating -10 to 60 degrees C; storage -20 to 70 degrees C; 95% RH non-condensing. Vibration 3 Grms, IEC 60068-2-64; shock 30 G, IEC 60068-2-27.
Mechanical and OS: 378.56 x 235.49 x 66.5 mm. Panel mount or 75/100 mm VESA mount. Aluminum housing with IP65 front-panel protection. Windows 10, Ubuntu, and CentOS supported.
