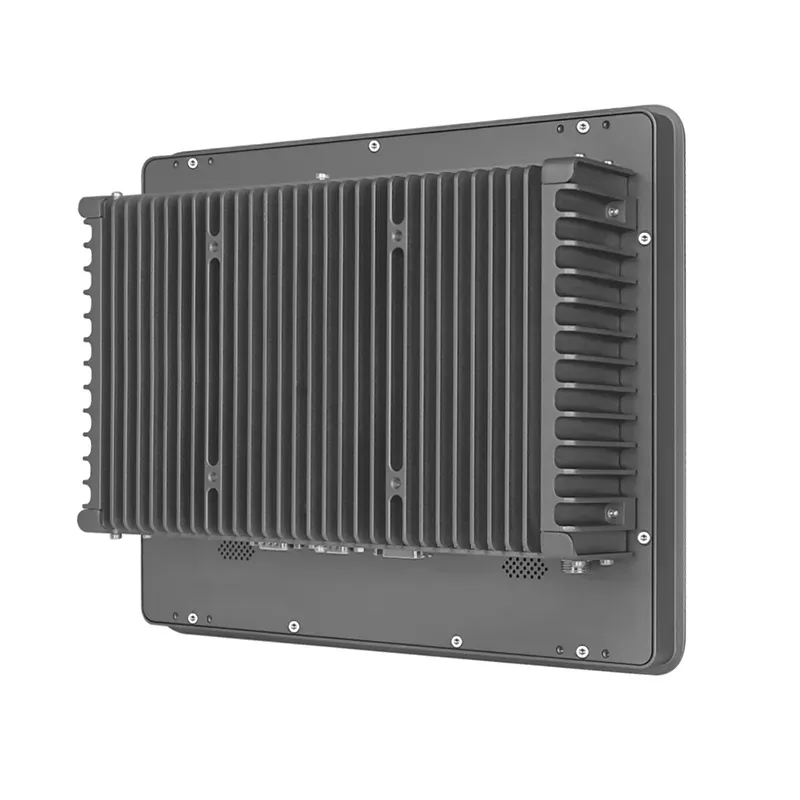

12.1 Inch Industrial Panel PC

12.1-inch industrial panel PC with a thin front bezel, IP65 protection, 1024 x 768 display, resistive touch, Intel CPU options, and 9-36V DC input.

Compact Thin-Bezel Industrial HMI This 12.1-inch industrial panel PC combines a slim front profile with an IP65-protected aluminum front panel for dependable machine-control, kiosk, and embedded HMI applications. It supports Intel Celeron J4125/J6412/N100/N150 processors and 8th-13th Gen Core i5/i7 configurations.

Technical Specifications

Display: 12.1-inch TFT-LCD; 85 degree viewing angle; 1024 x 768 resolution; 500 cd/m2 luminance; 30,000-hour minimum backlight life.

Touchscreen: 5-wire resistive touch screen; capacitive touch optional; 85% light transmission; 10 million activations.

CPU and Memory: Intel Celeron J4125/J6412/N100/N150 or 8th/10th/11th/12th/13th Gen Core i5/i7. DDR4 or DDR5 SODIMM memory; up to 64 GB depending on platform.

Storage and Expansion: M.2 2242/2260/2280 SATA, 2.5-inch SATA, and M.2 2280 NVMe. M.2 3042/3052 for optional 3G/4G/5G with SIM slot; M.2 2230 Wi-Fi and Bluetooth.

I/O and Networking: 2 x RJ45 Intel i225V/i226V LAN; optional expansion to 4 LAN ports. 4 x USB 2.0 + 2 x USB 3.0, configuration varies by CPU. 2 x DB RS-232/422/485, optional 4 x RS-232. 1 x HDMI, 1 x audio line-out, optional GPIO, and watchdog timer.

Power and Environment: 9-36V DC aviation connector. Operating temperature -10 to 60 degrees C with airflow; storage -20 to 70 degrees C; 95% relative humidity at 40 degrees C non-condensing. SSD vibration 3 Grms, IEC 60068-2-64; shock 30 G, IEC 60068-2-27.

Mechanical and OS: 293 x 234 x 66.5 mm. Panel mount or 75/100 mm VESA mount. Aluminum housing with IP65 front-panel protection. Windows 10, Ubuntu, and CentOS supported.
